20 pieces
-
MOLEX MOLEX-Headers, Male Pins-878311041
Pin Structure;2x5P/Number of PINs;10P/Number of Rows;2/Mounting Type;Through Hole/Current Rating;2A/Voltage Rating (Max);125V/Contact Material;Phosphor bronze/Contact Plating;Gold/Color;Black/Operating Temperature;-55℃~+105℃/Pitch;2mm/Number of PINs Per Row;5/Plastic Material;PA/Flame Retardant Rating;UL94V-02 -55℃~+105℃ 10P 5 2mm 2A 125V 2x5P Through Hole,P=2mm Headers, Male Pins RoHS
$5.94
-

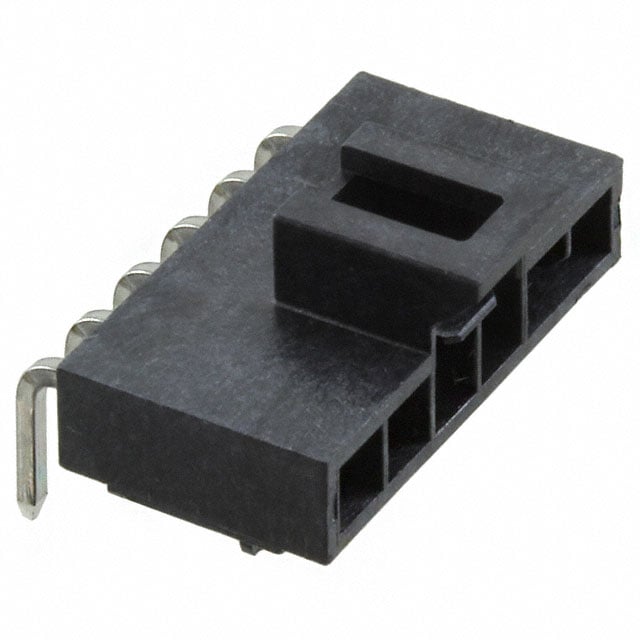

MOLEX MOLEX-Headers, Male Pins-1053131206
/Number of PINs;6P/Number of Rows;1/Mounting Type;Right Angle/Current Rating;8A/Voltage Rating (Max);250V/Contact Material;Brass/Contact Plating;Tin/Color;Black/Operating Temperature;-40℃~+105℃/Pitch;2.5mm/Flame Retardant Rating;UL94V-0Connector Header Right Angle -40℃~+105℃
$5.85
-
MOLEX MOLEX-Headers, Male Pins-10321051
Through Hole,P=2.54mm Headers, Male Pins RoHS
$5.64
-
MOLEX MOLEX-Headers, Male Pins-430450802
Pin Structure;2x4P/Number of PINs;8P/Number of Rows;2/Mounting Type;Right Angle/Current Rating;8.5A/Voltage Rating (Max);600V/Contact Material;Brass/Contact Plating;Gold/Color;Black/Operating Temperature;-40℃~+105℃/Pitch;3mm/Row Spacing;3mm/Reference Series;Micro-Fit(MX 3.0)/Number of PINs Per Row;4/Flame Retardant Rating;UL94V-0/Supplementary Features;Harpoon Contact (Plastic)/X-Length of Bottom Edge on Board (Spacing Line);15.65mmConnector Header 8 position 3mm Pitch 8.5A Right Angle -40℃~+105℃
$5.43
-
MOLEX MOLEX-Headers, Male Pins-430451021
Pin Structure;2x5P/Number of PINs;10P/Number of Rows;2/Mounting Type;Right Angle/Current Rating;8.5A/Voltage Rating (Max);600V/Contact Material;Brass/Contact Plating;Tin/Color;Black/Operating Temperature;-40℃~+105℃/Pitch;3mm/Row Spacing;3mm/Reference Series;Micro-Fit(MX 3.0)/Number of PINs Per Row;5/Flame Retardant Rating;UL94V-0/Supplementary Features;Harpoon Pin (Metal);Auxiliary Solder Pin/X-Length of Bottom Edge on Board (Spacing Line);18.65mmConnector Header 10 position 3mm Pitch 8.5A Right Angle -40℃~+105℃
$5.16
-

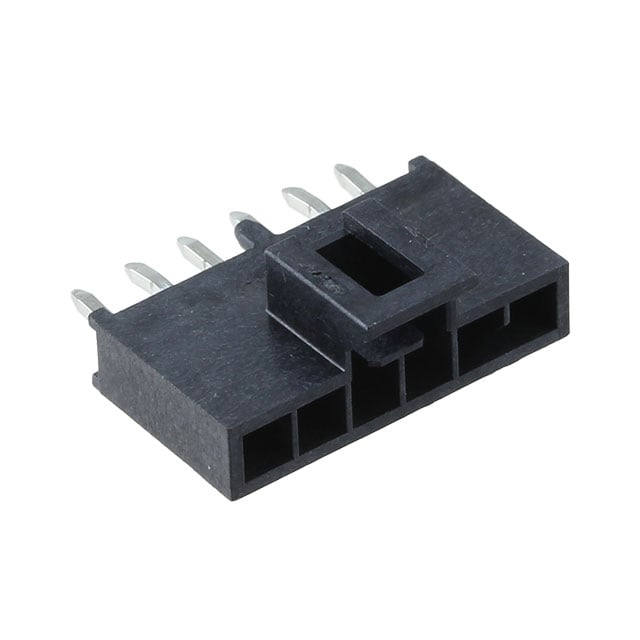

MOLEX MOLEX-Headers, Male Pins-1053091206
Pin Structure;1x6P/Number of PINs;6P/Number of Rows;1/Mounting Type;Through Hole/Current Rating;8A/Voltage Rating (Max);250V/Contact Material;Brass/Contact Plating;Tin/Color;Black/Operating Temperature;-40℃~+105℃/Pitch;2.5mm/Number of PINs Per Row;6/Flame Retardant Rating;UL94V-01 -40℃~+105℃ 6P 6 2.5mm 8A 250V 1x6P Through Hole,P=2.5mm Headers, Male Pins RoHS
$5.94
-
MOLEX MOLEX-Headers, Male Pins-2002411215
Pin Structure;1x5P/Number of PINs;5P/Number of Rows;1/Mounting Type;Right Angle/Contact Material;Copper alloy/Contact Plating;Tin/Color;Black/Operating Temperature;-40℃~+105℃/Pitch;5.7mm/Number of PINs Per Row;5/Plastic Material;LCP/Flame Retardant Rating;UL94V-01 5P -40℃~+105℃ 5 5.7mm 1x5P Through Hole,Right Angle Headers, Male Pins RoHS
$5.58
-
MOLEX MOLEX-Headers, Male Pins-430452012
Pin Structure;2x10P/Number of PINs;20P/Number of Rows;2/Mounting Type;Through Hole/Current Rating;8.5A/Voltage Rating (Max);600V/Contact Material;Brass/Contact Plating;Tin/Color;Black/Operating Temperature;-40℃~+105℃/Pitch;3mm/Row Spacing;3mm/Reference Series;Micro-Fit(MX 3.0)/Number of PINs Per Row;10/Flame Retardant Rating;UL94V-0/Supplementary Features;With post;K Pin/X-Length of Bottom Edge on Board (Spacing Line);33.65mmConnector Header 20 position 3mm Pitch 8.5A Through Hole -40℃~+105℃
$5.79
-
MOLEX MOLEX-Headers, Male Pins-436500815
Pin Structure;1x8P/Number of PINs;8P/Number of Rows;1/Mounting Type;Through Hole/Current Rating;8.5A/Voltage Rating (Max);600V/Contact Material;Brass/Contact Plating;Tin/Color;Black/Operating Temperature;-40℃~+105℃/Pitch;3mm/Reference Series;Micro-Fit(MX 3.0)/Number of PINs Per Row;8/Flame Retardant Rating;UL94V-0/Supplementary Features;With post;K Pin/X-Length of Bottom Edge on Board (Spacing Line);27.65mmConnector Header 8 position 3mm Pitch 8.5A Through Hole -40℃~+105℃
$5.61
-

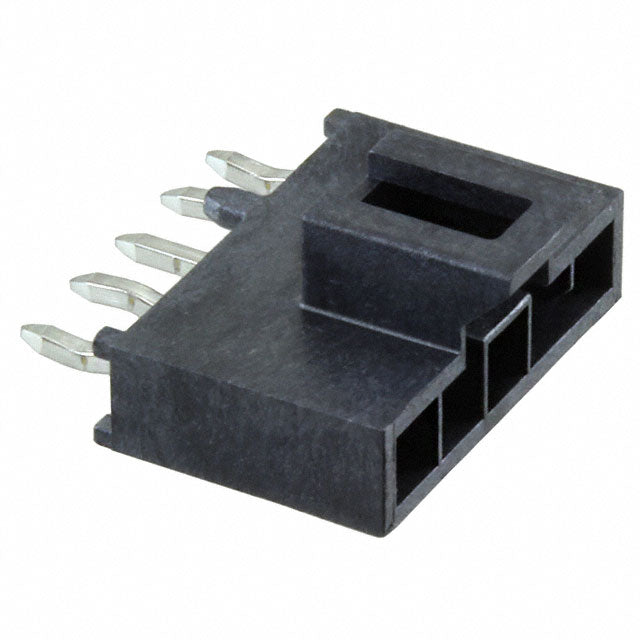

MOLEX MOLEX-Headers, Male Pins-1053091105
Pin Structure;1x5P/Number of PINs;5P/Number of Rows;1/Mounting Type;Through Hole/Current Rating;8A/Voltage Rating (Max);250V/Contact Material;Brass/Contact Plating;Tin/Color;Black/Operating Temperature;-40℃~+125℃/Pitch;2.5mm/Number of PINs Per Row;5/Flame Retardant Rating;UL94V-01 -40℃~+125℃ 5P 5 2.5mm 8A 250V 1x5P Through Hole,P=2.5mm Headers, Male Pins RoHS
$5.76
-
MOLEX MOLEX-Headers, Male Pins-349580340
/Number of PINs;34P/Number of Rows;3/Mounting Type;Through Hole/Voltage Rating (Max);500V/Contact Material;Brass/Contact Plating;Tin/Color;Black/Operating Temperature;-40℃~+105℃/Pitch;2mm/Row Spacing;2.2mm/Flame Retardant Rating;UL94HB/X-Length of Bottom Edge on Board (Spacing Line);38mm3 -40℃~+105℃ 34P 2mm 500V 2.2mm Through Hole,P=2mm Headers, Male Pins RoHS
$5.76
-
MOLEX MOLEX-Headers, Male Pins-39301240
Pin Structure;2x12P/Number of PINs;24P/Number of Rows;2/Mounting Type;Right Angle/Current Rating;13A/Voltage Rating (Max);600V/Contact Material;Brass/Contact Plating;Tin/Color;White/Operating Temperature;-40℃~+105℃/Pitch;4.2mm/Row Spacing;4.2mm/Number of PINs Per Row;12/Plastic Material;PA/Flame Retardant Rating;UL94V-2Connector Header 24 position 4.2mm Pitch Right Angle
$5.61
-
MOLEX MOLEX-Headers, Male Pins-15477608
Pin Structure;2x4P/Number of PINs;8P/Number of Rows;2/Contact Material;Copper alloy/Pitch;2.54mm/Row Spacing;2.54mm/Number of PINs Per Row;4Connector Header 8 position 2.54mm Pitch
$5.70
-
MOLEX MOLEX-Headers, Male Pins-39301180
Pin Structure;2x9P/Number of PINs;18P/Number of Rows;2/Mounting Type;Right Angle/Current Rating;13A/Voltage Rating (Max);600V/Contact Material;Brass/Contact Plating;Tin/Color;White/Operating Temperature;-40℃~+105℃/Pitch;4.2mm/Row Spacing;4.2mm/Number of PINs Per Row;9/Plastic Material;PA/Flame Retardant Rating;UL94V-2Connector Header 18 position 4.2mm Pitch Right Angle
$5.28
-
MOLEX MOLEX-Headers, Male Pins-436500618
Pin Structure;1x6P/Number of PINs;6P/Number of Rows;1/Mounting Type;Through Hole/Current Rating;8.5A/Voltage Rating (Max);600V/Contact Material;Brass/Contact Plating;Tin/Color;Black/Operating Temperature;-40℃~+105℃/Pitch;3mm/Reference Series;Micro-Fit(MX 3.0)/Number of PINs Per Row;6/Flame Retardant Rating;UL94V-0/Supplementary Features;Harpoon Pin (Metal);K Pin/X-Length of Bottom Edge on Board (Spacing Line);21.65mmConnector Header 6 position 3mm Pitch 8.5A Through Hole -40℃~+105℃
$5.61
-

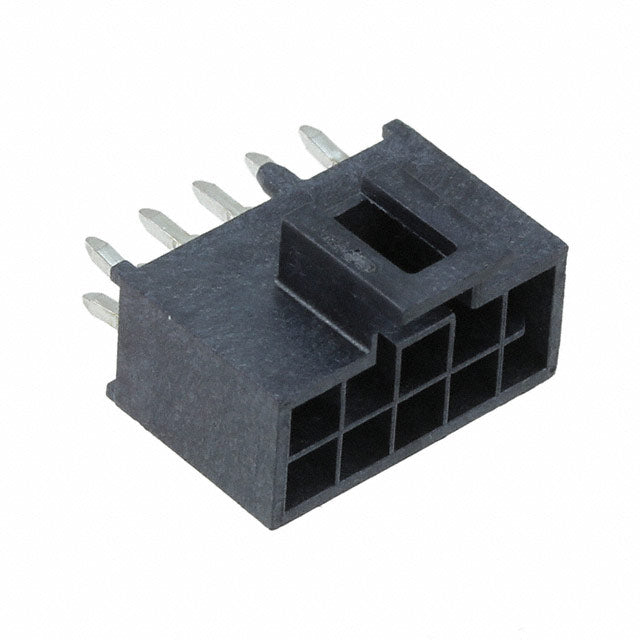

MOLEX MOLEX-Headers, Male Pins-1053101210
Pin Structure;2x5P/Number of PINs;10P/Number of Rows;2/Mounting Type;Through Hole/Current Rating;7.5A/Voltage Rating (Max);250V/Contact Material;Brass/Contact Plating;Tin/Color;Black/Operating Temperature;-40℃~+105℃/Pitch;2.5mm/Row Spacing;2.5mm/Number of PINs Per Row;5/Flame Retardant Rating;UL94V-0Connector Header 10 position 2.5mm Pitch Through Hole -40℃~+105℃
$5.64
-
MOLEX MOLEX-Headers, Male Pins-878311619
/Number of PINs;16P/Number of Rows;2/Mounting Type;Through Hole/Current Rating;2A/Voltage Rating (Max);125V/Contact Material;Phosphor bronze/Contact Plating;Tin/Color;Black/Operating Temperature;-55℃~+105℃/Pitch;2mm/Row Spacing;2mm/Plastic Material;PA/Flame Retardant Rating;UL94V-0Connector Header Through Hole -55℃~+105℃
$5.40
-
MOLEX MOLEX-Headers, Male Pins-559594030
Pin Structure;2x20P/Number of PINs;40P/Number of Rows;2/Mounting Type;Right Angle/Current Rating;3A/Voltage Rating (Max);250V/Contact Material;Brass/Contact Plating;Tin/Color;White/Operating Temperature;-40℃~+105℃/Pitch;2mm/Row Spacing;5mm/Number of PINs Per Row;20/Flame Retardant Rating;UL94V-0Connector Header 40 position 2mm Pitch Right Angle
$5.46
-
MOLEX MOLEX-Headers, Male Pins-22112082
Pin Structure;1x8P/Number of PINs;8P/Number of Rows;1/Mounting Type;Through Hole/Current Rating;4A/Voltage Rating (Max);500V/Contact Material;Brass/Contact Plating;Gold/Color;White/Pitch;2.54mm/Number of PINs Per Row;8/Plastic Material;PA/Flame Retardant Rating;UL94V-0Connector Header 8 position 2.54mm Pitch Through Hole
$5.40
-

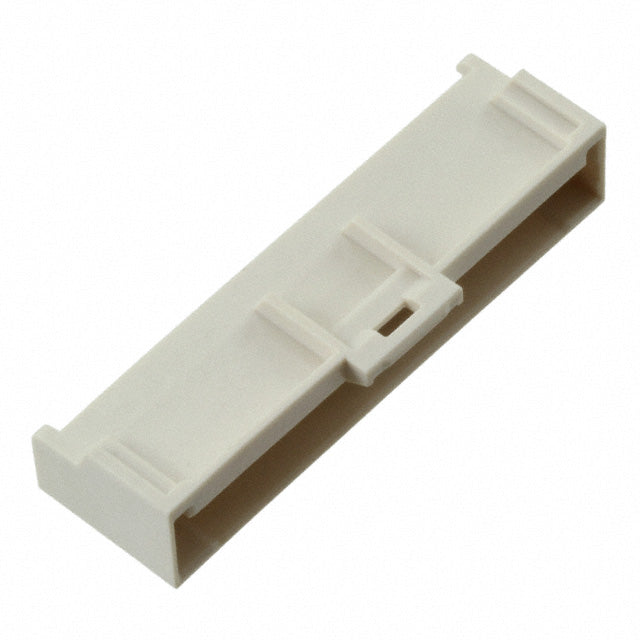

MOLEX MOLEX-Headers, Male Pins-5018764040
Pin Structure;2x20P/Number of PINs;40P/Number of Rows;2/Mounting Type;Right Angle/Current Rating;2A/Voltage Rating (Max);250V/Contact Material;Brass/Contact Plating;Tin/Color;White/Operating Temperature;-40℃~+105℃/Pitch;2mm/Row Spacing;2mm/Number of PINs Per Row;20/Flame Retardant Rating;UL94V-0Connector Header 40 position 2mm Pitch Right Angle
$5.28
-
MOLEX MOLEX-Headers, Male Pins-430451214
Pin Structure;2x6P/Number of PINs;12P/Number of Rows;2/Mounting Type;Through Hole/Current Rating;8.5A/Voltage Rating (Max);600V/Contact Material;Brass/Contact Plating;Gold/Color;Black/Operating Temperature;-40℃~+105℃/Pitch;3mm/Row Spacing;3mm/Reference Series;Micro-Fit(MX 3.0)/Number of PINs Per Row;6/Flame Retardant Rating;UL94V-0/Supplementary Features;With post;K Pin/X-Length of Bottom Edge on Board (Spacing Line);21.65mmConnector Header 12 position 3mm Pitch 8.5A Through Hole -40℃~+105℃
$5.34
-

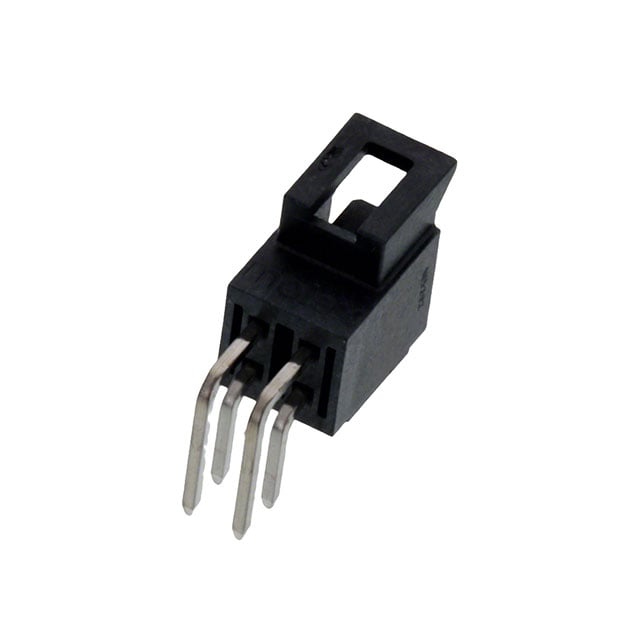

MOLEX MOLEX-Headers, Male Pins-1053141104
Pin Structure;2x2P/Number of PINs;4P/Number of Rows;2/Mounting Type;Right Angle/Current Rating;7.5A/Voltage Rating (Max);250V/Contact Material;Brass/Contact Plating;Tin/Color;Black/Operating Temperature;-40℃~+105℃/Pitch;2.5mm/Row Spacing;2.5mm/Number of PINs Per Row;2/Flame Retardant Rating;UL94V-0Connector Header 2.5mm Pitch Right Angle -40℃~+105℃
$5.25
-
MOLEX MOLEX-Headers, Male Pins-2002411216
Pin Structure;1x6P/Number of PINs;6P/Number of Rows;1/Mounting Type;Right Angle/Current Rating;26A/Voltage Rating (Max);600V/Contact Material;High Conductivity Copper/Contact Plating;Tin/Color;Black/Operating Temperature;-40℃~+105℃/Pitch;5.7mm/Number of PINs Per Row;6Connector Header Right Angle -40℃~+105℃
$5.37
-
MOLEX MOLEX-Headers, Male Pins-22032101
Pin Structure;1x10P/Number of PINs;10P/Number of Rows;1/Mounting Type;Through Hole/Contact Plating;Tin/Color;White/Pitch;2.54mm/Circluar Pins/Square Pins;Pin Header/Length of Mating Pin;7.49mm/Insulation Height;3.3mm/Length of End Connection Pin;3.43mmPin Header 10 Position 2.54mm Pitch Single Row Through Hole
$5.25
You have seen 4176 out of 25001 products
