50 pieces
-
onsemi onsemi-Single FETs, MOSFETs-FQD20N06TF
Drain to Source Voltage;60V/Gate Charge(Qg);15nC@10V/Number;1 N-channel/Type;N-Channel/RDS(on);63mΩ@10V/Operating Temperature -;-55℃~+150℃/Reverse Transfer Capacitance (Crss@Vds);35pF/Current - Continuous Drain(Id);16.8A/Gate Threshold Voltage (Vgs(th));4V/Ciss-Input Capacitance;590pF60V 63mΩ@10V 1 N-channel TO-252(DPAK) Single FETs, MOSFETs RoHS
$1.14
-
onsemi onsemi-Single FETs, MOSFETs-RFD14N05SM
Drain to Source Voltage;50V/Gate Charge(Qg);40nC@20V/Number;1 N-channel/Type;N-Channel/Pd - Power Dissipation;48W/RDS(on);100mΩ@10V/Operating Temperature -;-55℃~+175℃/Reverse Transfer Capacitance (Crss@Vds);50pF/Current - Continuous Drain(Id);14A/Gate Threshold Voltage (Vgs(th));4V/Ciss-Input Capacitance;570pF/Output Capacitance(Coss);185pF50V 100mΩ@10V 1 N-channel 48W TO-252(DPAK) Single FETs, MOSFETs RoHS
$1.08
-
onsemi onsemi-Single FETs, MOSFETs-FQD3N60CTM
Drain to Source Voltage;600V/Gate Charge(Qg);14nC@10V/Number;1 N-channel/Type;N-Channel/Pd - Power Dissipation;50W/RDS(on);3.4Ω@10V/Operating Temperature -;-55℃~+150℃/Reverse Transfer Capacitance (Crss@Vds);8pF/Current - Continuous Drain(Id);2.4A/Gate Threshold Voltage (Vgs(th));4V/Ciss-Input Capacitance;565pF/Output Capacitance(Coss);60pF600V 3.4Ω@10V 1 N-channel 50W TO-252(DPAK) Single FETs, MOSFETs RoHS
$1.02
-

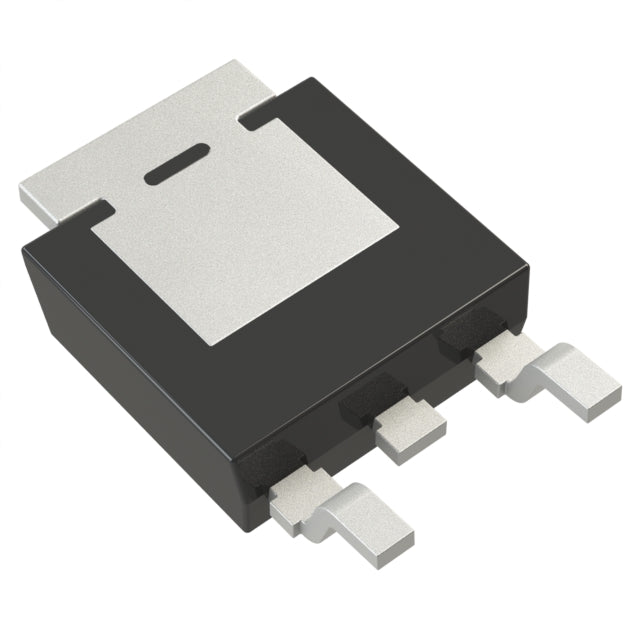

onsemi onsemi-Single FETs, MOSFETs-FQD5N20LTF
Drain to Source Voltage;200V/Gate Charge(Qg);6.2nC@5V/Number;1 N-channel/Type;N-Channel/Pd - Power Dissipation;2.5W/RDS(on);1.2Ω@10V/Operating Temperature -;-55℃~+150℃/Reverse Transfer Capacitance (Crss@Vds);8pF/Current - Continuous Drain(Id);3.8A/Gate Threshold Voltage (Vgs(th));2V/Ciss-Input Capacitance;325pF/Output Capacitance(Coss);50pF200V 1.2Ω@10V 1 N-channel 2.5W TO-252(DPAK) Single FETs, MOSFETs RoHS
$0.81
-

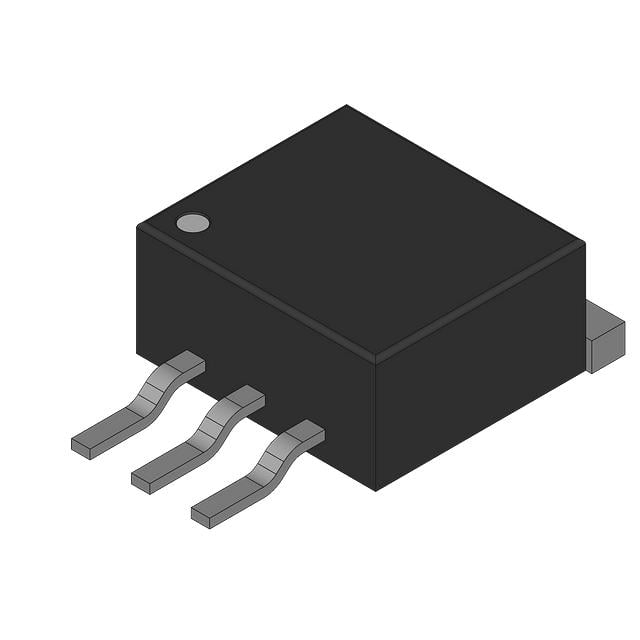

onsemi onsemi-Single FETs, MOSFETs-FDD6035AL
Drain to Source Voltage;30V/Gate Charge(Qg);18nC@5V/Number;1 N-channel/Type;N-Channel/Pd - Power Dissipation;56W/RDS(on);14mΩ@4.5V/Operating Temperature -;-55℃~+175℃/Reverse Transfer Capacitance (Crss@Vds);150pF/Current - Continuous Drain(Id);46A/Gate Threshold Voltage (Vgs(th));3V/Ciss-Input Capacitance;1.23nF/Output Capacitance(Coss);325pF30V 14mΩ@4.5V 1 N-channel 56W TO-252(DPAK) Single FETs, MOSFETs RoHS
$0.15
-
onsemi onsemi-Single FETs, MOSFETs-FQD24N08TF
Drain to Source Voltage;80V/Gate Charge(Qg);25nC/Number;1 N-channel/Type;N-Channel/Pd - Power Dissipation;2.5W/RDS(on);60mΩ@10V/Operating Temperature -;-55℃~+150℃/Reverse Transfer Capacitance (Crss@Vds);65pF/Current - Continuous Drain(Id);19.6A/Gate Threshold Voltage (Vgs(th));4V/Ciss-Input Capacitance;750pF/Output Capacitance(Coss);270pF80V 60mΩ@10V 1 N-channel 2.5W TO-252(DPAK) Single FETs, MOSFETs RoHS
$0.84
-
onsemi onsemi-Single FETs, MOSFETs-ISL9N310AD3ST
Drain to Source Voltage;30V/Gate Charge(Qg);26nC@5V/Number;1 N-channel/Type;N-Channel/Pd - Power Dissipation;70W/RDS(on);15mΩ@4.5V/Operating Temperature -;-55℃~+175℃/Reverse Transfer Capacitance (Crss@Vds);170pF/Current - Continuous Drain(Id);35A/Gate Threshold Voltage (Vgs(th));3V/Ciss-Input Capacitance;1.8nF/Output Capacitance(Coss);375pF30V 15mΩ@4.5V 1 N-channel 70W TO-252-3(DPAK) Single FETs, MOSFETs RoHS
$1.02
-
onsemi onsemi-Single FETs, MOSFETs-FDD1600N10ALZD
Drain to Source Voltage;100V/Gate Charge(Qg);3.61nC@10V/Number;1 N-channel/Type;N-Channel/Pd - Power Dissipation;14.9W/RDS(on);375mΩ@5V/Operating Temperature -;-55℃~+150℃/Reverse Transfer Capacitance (Crss@Vds);2.04pF/Current - Continuous Drain(Id);6.8A/Gate Threshold Voltage (Vgs(th));2.8V/Ciss-Input Capacitance;225pF/Output Capacitance(Coss);55pF100V 375mΩ@5V 1 N-channel 14.9W TO-252-4 Single FETs, MOSFETs RoHS
$1.08
-

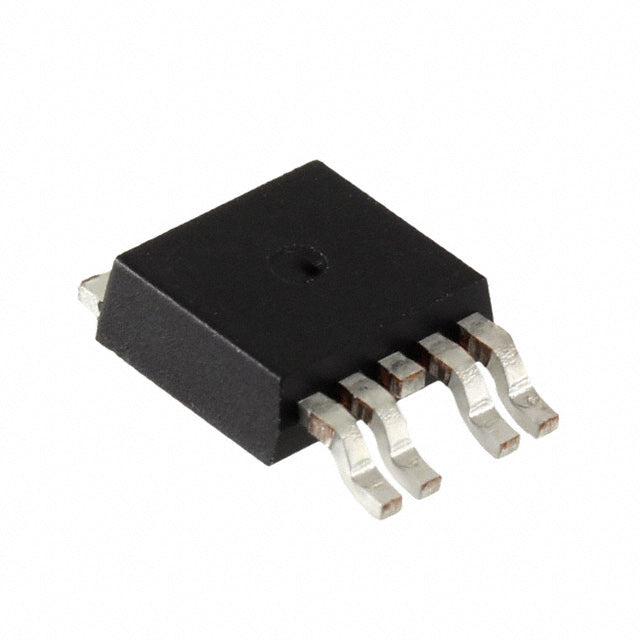

onsemi onsemi-Single FETs, MOSFETs-FDD850N10LD
Drain to Source Voltage;100V/Gate Charge(Qg);28.9nC@10V/Number;1 N-channel/Type;N-Channel/Pd - Power Dissipation;42W/RDS(on);75mΩ@10V/Operating Temperature -;-55℃~+150℃/Reverse Transfer Capacitance (Crss@Vds);42pF/Current - Continuous Drain(Id);15.3A/Gate Threshold Voltage (Vgs(th));2.5V/Ciss-Input Capacitance;1.465nF/Output Capacitance(Coss);105pF100V 75mΩ@10V 1 N-channel 42W TO-252-4 Single FETs, MOSFETs RoHS
$1.50
-
onsemi onsemi-Single FETs, MOSFETs-HUFA75321D3ST
Drain to Source Voltage;55V/Gate Charge(Qg);36nC@10V/Number;1 N-channel/Type;N-Channel/Pd - Power Dissipation;93W/RDS(on);36mΩ@10V/Operating Temperature -;-55℃~+175℃/Reverse Transfer Capacitance (Crss@Vds);60pF/Current - Continuous Drain(Id);20A/Gate Threshold Voltage (Vgs(th));4V/Ciss-Input Capacitance;680pF/Output Capacitance(Coss);270pF55V 36mΩ@10V 1 N-channel 93W TO-252AA Single FETs, MOSFETs RoHS
$1.26
-
onsemi onsemi-Single FETs, MOSFETs-HUFA76409D3ST
Drain to Source Voltage;60V/Gate Charge(Qg);15nC@10V/Number;1 N-channel/Type;N-Channel/Pd - Power Dissipation;49W/RDS(on);71mΩ@5V/Operating Temperature -;-55℃~+175℃/Reverse Transfer Capacitance (Crss@Vds);28pF/Current - Continuous Drain(Id);17A/Gate Threshold Voltage (Vgs(th));3V/Ciss-Input Capacitance;485pF/Output Capacitance(Coss);130pF60V 71mΩ@5V 1 N-channel 49W TO-252AA Single FETs, MOSFETs RoHS
$1.17
-
onsemi onsemi-Single FETs, MOSFETs-FDB8880
Drain to Source Voltage;30V/Gate Charge(Qg);29nC@10V/Number;1 N-channel/Type;N-Channel/Pd - Power Dissipation;55W/RDS(on);14.5mΩ@4.5V/Operating Temperature -;-55℃~+175℃/Reverse Transfer Capacitance (Crss@Vds);147pF/Current - Continuous Drain(Id);54A/Gate Threshold Voltage (Vgs(th));2.5V/Ciss-Input Capacitance;1.24nF/Output Capacitance(Coss);255pF30V 14.5mΩ@4.5V 1 N-channel 55W TO-263AB Single FETs, MOSFETs RoHS
$1.26
-
onsemi onsemi-Single FETs, MOSFETs-ISL9N307AS3ST
Drain to Source Voltage;30V/Gate Charge(Qg);75nC@10V/Number;1 N-channel/Type;N-Channel/Pd - Power Dissipation;100W/RDS(on);11.5mΩ@4.5V/Operating Temperature -;-55℃~+175℃/Reverse Transfer Capacitance (Crss@Vds);250pF/Current - Continuous Drain(Id);75A/Gate Threshold Voltage (Vgs(th));3V/Ciss-Input Capacitance;3nF/Output Capacitance(Coss);580pF30V 11.5mΩ@4.5V 1 N-channel 100W TO-263AB Single FETs, MOSFETs RoHS
$1.35
-

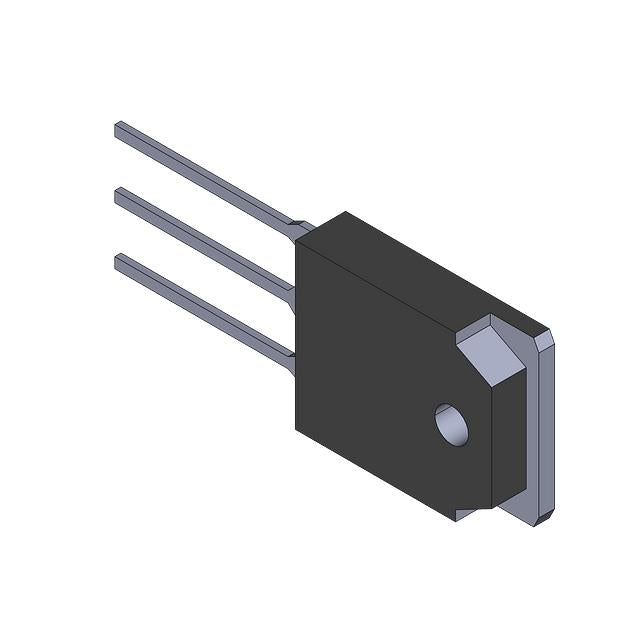

onsemi onsemi-Single FETs, MOSFETs-IRFS250B
Drain to Source Voltage;200V/Gate Charge(Qg);123nC@10V/Number;1 N-channel/Type;N-Channel/Pd - Power Dissipation;90W/RDS(on);85mΩ@10V/Operating Temperature -;-55℃~+150℃/Reverse Transfer Capacitance (Crss@Vds);100pF/Current - Continuous Drain(Id);21.3A/Gate Threshold Voltage (Vgs(th));4V/Ciss-Input Capacitance;3.4nF/Output Capacitance(Coss);430pF200V 85mΩ@10V 1 N-channel 90W TO-3PF Single FETs, MOSFETs
$1.47
-
onsemi onsemi-Single FETs, MOSFETs-2N5245
Drain to Source Voltage;30V/Number;1 N-channel/Type;N-Channel/Pd - Power Dissipation;350mW/Operating Temperature -;-55℃~+150℃/Current - Continuous Drain(Id);15mA/Gate Threshold Voltage (Vgs(th));600mV30V 1 N-channel 350mW TO-92-3 Single FETs, MOSFETs RoHS
$1.02
-

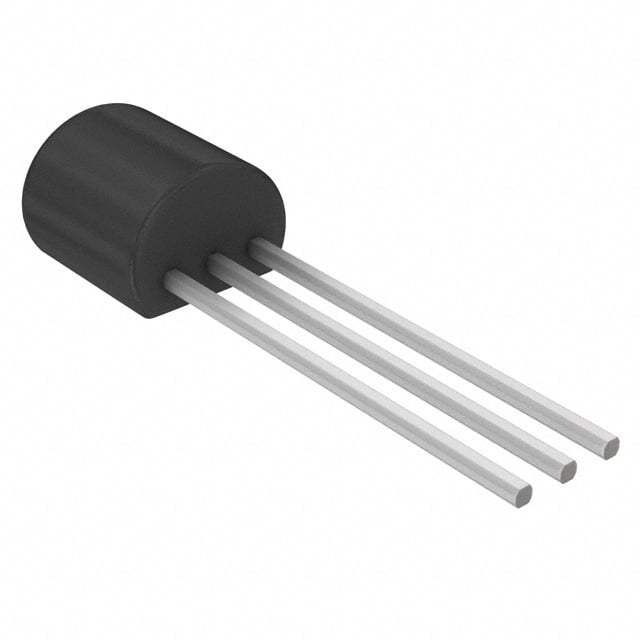

onsemi onsemi-Single FETs, MOSFETs-2N5950
Drain to Source Voltage;30V/Number;1 N-channel/Type;N-Channel/Pd - Power Dissipation;350mW/RDS(on);210Ω/Operating Temperature -;-55℃~+150℃/Reverse Transfer Capacitance (Crss@Vds);2pF/Current - Continuous Drain(Id);15mA/Gate Threshold Voltage (Vgs(th));6V/Ciss-Input Capacitance;9pF30V 210Ω 1 N-channel 350mW TO-92-3 Single FETs, MOSFETs RoHS
$0.24
-

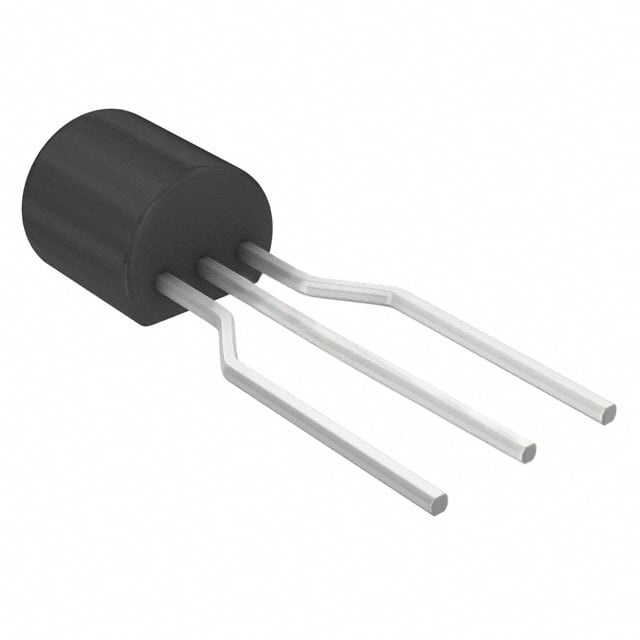

onsemi onsemi-Single FETs, MOSFETs-FQNL2N50BBU
Drain to Source Voltage;500V/Gate Charge(Qg);8nC@10V/Number;1 N-channel/Type;N-Channel/RDS(on);5.3Ω@10V/Operating Temperature -;-55℃~+150℃/Reverse Transfer Capacitance (Crss@Vds);6pF/Current - Continuous Drain(Id);350mA/Gate Threshold Voltage (Vgs(th));5V/Ciss-Input Capacitance;230pF/Output Capacitance(Coss);40pF500V 5.3Ω@10V 1 N-channel TO-92-3 Single FETs, MOSFETs RoHS
$0.63
-
onsemi onsemi-Single FETs, MOSFETs-IRFNL210BTA-FP001
Drain to Source Voltage;200V/Gate Charge(Qg);9.3nC/Number;1 N-channel/Type;N-Channel/Pd - Power Dissipation;3.1W/RDS(on);1.5Ω@10V/Operating Temperature -;-55℃~+150℃/Reverse Transfer Capacitance (Crss@Vds);9pF/Current - Continuous Drain(Id);1A/Gate Threshold Voltage (Vgs(th));4V/Ciss-Input Capacitance;225pF/Output Capacitance(Coss);40pF200V 1.5Ω@10V 1 N-channel 3.1W TO-92L Single FETs, MOSFETs RoHS
$0.60
-
onsemi onsemi-Single FETs, MOSFETs-SFT1423-TL-E
Drain to Source Voltage;500V/Gate Charge(Qg);8.7nC@10V/Number;1 N-channel/Type;N-Channel/Pd - Power Dissipation;20W/RDS(on);4.9Ω@10V/Reverse Transfer Capacitance (Crss@Vds);6pF/Current - Continuous Drain(Id);2A/Gate Threshold Voltage (Vgs(th));2.6V/Ciss-Input Capacitance;175pF/Output Capacitance(Coss);32pF500V 4.9Ω@10V 1 N-channel 20W TO-252 Single FETs, MOSFETs RoHS
$1.08
-
onsemi onsemi-Single FETs, MOSFETs-NTGS4141NT1
Drain to Source Voltage;30V/Gate Charge(Qg);12nC@10V/Number;1 N-channel/Type;N-Channel/Pd - Power Dissipation;1W/RDS(on);25mΩ@10V/Operating Temperature -;-55℃~+150℃/Reverse Transfer Capacitance (Crss@Vds);75pF/Current - Continuous Drain(Id);5A/Gate Threshold Voltage (Vgs(th));3V/Ciss-Input Capacitance;560pF/Output Capacitance(Coss);115pF30V 25mΩ@10V 1 N-channel 1W TSOP-6 Single FETs, MOSFETs
$0.81
-
onsemi onsemi-Single FETs, MOSFETs-FDW2501NZ
Drain to Source Voltage;20V/Gate Charge(Qg);17nC@4.5V/Number;2 N-Channel/Type;N-Channel/Pd - Power Dissipation;1W/RDS(on);25mΩ@2.5V/Operating Temperature -;-55℃~+150℃/Reverse Transfer Capacitance (Crss@Vds);161pF/Current - Continuous Drain(Id);5.5A/Gate Threshold Voltage (Vgs(th));1.5V/Ciss-Input Capacitance;1.286nF/Output Capacitance(Coss);305pF20V 25mΩ@2.5V 2 N-Channel 1W TSSOP-8 Single FETs, MOSFETs RoHS
$1.08
-
onsemi onsemi-Single FETs, MOSFETs-SI6467DQ
Drain to Source Voltage;20V/Gate Charge(Qg);96nC@4.5V/Number;1 P-Channel/Type;P-Channel/Pd - Power Dissipation;1.3W/RDS(on);21.5mΩ@1.8V/Operating Temperature -;-55℃~+150℃/Reverse Transfer Capacitance (Crss@Vds);559pF/Current - Continuous Drain(Id);9.2A/Gate Threshold Voltage (Vgs(th));1.5V/Ciss-Input Capacitance;5.878nF/Output Capacitance(Coss);994pF20V 21.5mΩ@1.8V 1 P-Channel 1.3W TSSOP-8 Single FETs, MOSFETs RoHS
$0.81
-
onsemi onsemi-Single FETs, MOSFETs-FDW2601NZ
Drain to Source Voltage;30V/Gate Charge(Qg);30nC@4.5V/Number;2 N-Channel/Type;N-Channel/Pd - Power Dissipation;1.6W/RDS(on);20mΩ@2.5V/Operating Temperature -;-55℃~+150℃/Reverse Transfer Capacitance (Crss@Vds);160pF/Current - Continuous Drain(Id);8.2A/Gate Threshold Voltage (Vgs(th));1.5V/Ciss-Input Capacitance;1.84nF/Output Capacitance(Coss);250pF30V 20mΩ@2.5V 2 N-Channel 1.6W TSSOP-8 Single FETs, MOSFETs RoHS
$1.32
-

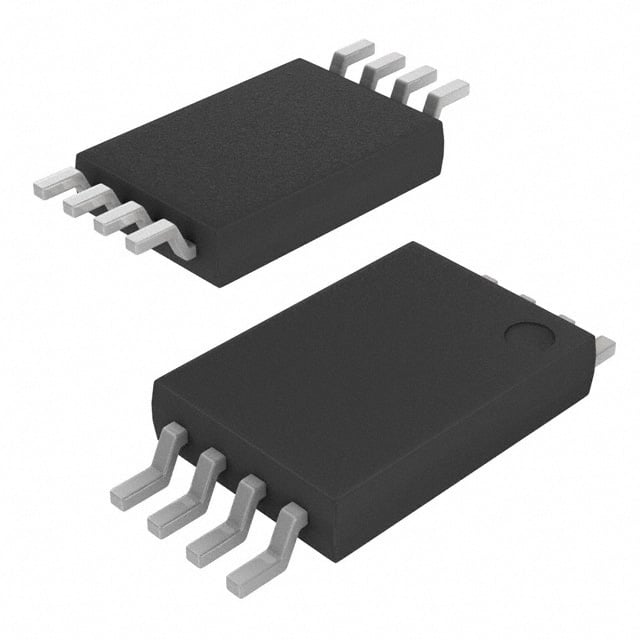

onsemi onsemi-Single FETs, MOSFETs-FDW9926A
Drain to Source Voltage;20V/Gate Charge(Qg);9nC@4.5V/Number;2 N-Channel/Type;N-Channel/Pd - Power Dissipation;30W/RDS(on);45mΩ@2.5V/Operating Temperature -;-55℃~+150℃/Reverse Transfer Capacitance (Crss@Vds);85pF/Current - Continuous Drain(Id);4.5A/Gate Threshold Voltage (Vgs(th));1.5V/Ciss-Input Capacitance;630pF/Output Capacitance(Coss);150pF20V 45mΩ@2.5V 2 N-Channel 30W TSSOP-8 Single FETs, MOSFETs RoHS
$0.75
You have seen 2640 out of 25001 products
