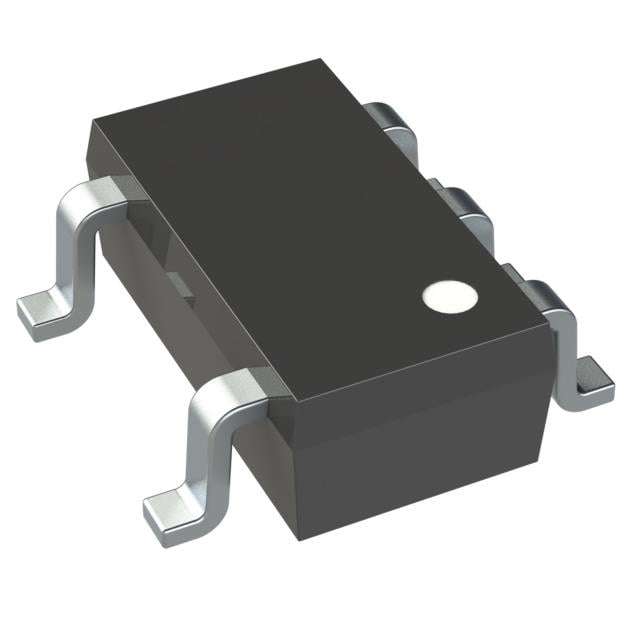

onsemi-Amplifiers-NCS20166SN2T1G

Description

Number of Channels;1/Quiescent Current;1mA/Operating Temperature;-40℃~+125℃/Gain Bandwidth Product;10MHz/Common Mode Rejection Ratio(CMRR);92dB/Ib - Input Bias Current;1pA/Vos - Input Offset Voltage;50uV/Slew Rate;6V/us/Input Offset Voltage Drift(Vos TC);1uV/℃/Output Current;25mA/Rail to Rail;Rail-to-Rail Input, Rail-to-Rail Output/Noise density(eN);10nV/√Hz@1kHz/Features;ESD protection;Reverse-phase input protection;Latch effect inhibition/Single Supply;3V~5.5V/Input Offset Current(Ios);1pA


50uV Rail-to-Rail Input, Rail-to-Rail Output 1pA 6V/us 92dB 1mA 10MHz 1 SC-74A-5 Amplifiers RoHS

Product form

Number of Channels;1/Quiescent Current;1mA/Operating Temperature;-40℃~+125℃/Gain Bandwidth Product;10MHz/Common Mode Rejection Ratio(CMRR);92dB/Ib - Input Bias Current;1pA/Vos - Input Offset Voltage;50uV/Slew Rate;6V/us/Input Offset... Read more

$8.52 Excl. VAT

    • Guaranteed secure & safe checkout.

      shop pay

    Description

    Number of Channels;1/Quiescent Current;1mA/Operating Temperature;-40℃~+125℃/Gain Bandwidth Product;10MHz/Common Mode Rejection Ratio(CMRR);92dB/Ib - Input Bias Current;1pA/Vos - Input Offset Voltage;50uV/Slew Rate;6V/us/Input Offset Voltage Drift(Vos TC);1uV/℃/Output Current;25mA/Rail to Rail;Rail-to-Rail Input, Rail-to-Rail Output/Noise density(eN);10nV/√Hz@1kHz/Features;ESD protection;Reverse-phase input protection;Latch effect inhibition/Single Supply;3V~5.5V/Input Offset Current(Ios);1pA


    50uV Rail-to-Rail Input, Rail-to-Rail Output 1pA 6V/us 92dB 1mA 10MHz 1 SC-74A-5 Amplifiers RoHS
