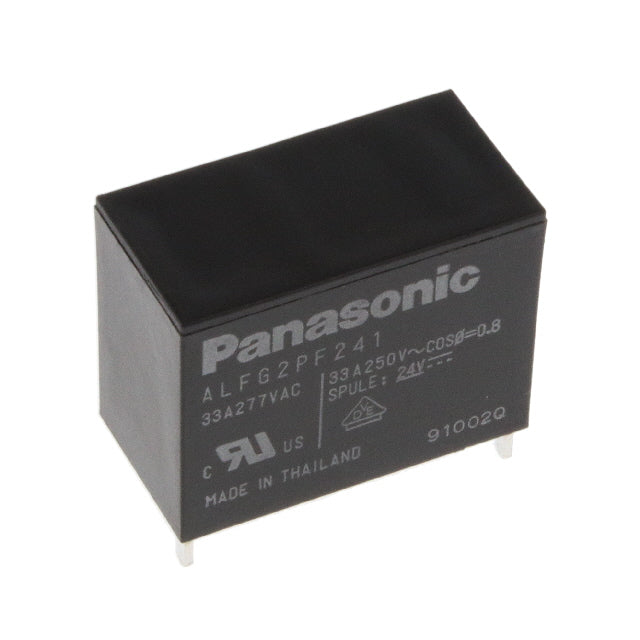

PANASONIC-Power Relays-ALFG2PF241

Description

Coil Voltage;24V/Contact Form;1 Set Normally Open: 1A (SPST NO)/Contact Rating;33A@250VAC/Switching Voltage(Max);250V@AC/Contact Material;AgSnO2/Coil Rated Power;1.4W/Coil Resistance;410Ω/Switching Current(Max);33A/Operate Time;20ms/Release Time;10ms/Contact Resistance;100mΩ/Operating Temperature;-40℃~+60℃


Power Relay 1 Form A: 1A (SPST-NO) 24V Coil Through Hole,15.7x30.1mm

Product form

Coil Voltage;24V/Contact Form;1 Set Normally Open: 1A (SPST NO)/Contact Rating;33A@250VAC/Switching Voltage(Max);250V@AC/Contact Material;AgSnO2/Coil Rated Power;1.4W/Coil Resistance;410Ω/Switching Current(Max);33A/Operate Time;20ms/Release Time;10ms/Contact Resistance;100mΩ/Operating Temperature;-40℃~+60℃Power... Read more

$9.75 Excl. VAT

    • Guaranteed secure & safe checkout.

      shop pay

    Description

    Coil Voltage;24V/Contact Form;1 Set Normally Open: 1A (SPST NO)/Contact Rating;33A@250VAC/Switching Voltage(Max);250V@AC/Contact Material;AgSnO2/Coil Rated Power;1.4W/Coil Resistance;410Ω/Switching Current(Max);33A/Operate Time;20ms/Release Time;10ms/Contact Resistance;100mΩ/Operating Temperature;-40℃~+60℃


    Power Relay 1 Form A: 1A (SPST-NO) 24V Coil Through Hole,15.7x30.1mm
